9000 Bottles Per hour Pesticide Filling Machine 50ml-1000ml Range 16 Heads
1.Inroduction of the 9000 Bottles Per hour Pesticide Filling Machine 50ml-1000ml Range 16 Heads
GX-16-8AH full automatic follow type filling and capping machine has horizontal structure. In the filling part, servo motor driven follow-up diving filling and volumetric metering filling principle are adopted to realize high speed and high precision of filling.
The capping part integrates bottle entry, nitrogen filling, cap sorting, capping and bottle exit all in one machine. It adpots cap grabbing, positioning screwing. In the process of capping, there is no bottle damage, no capping damage. This machine has high capping efficiency, high qualification rate and smooth operation.
2.Parameters of the 9000 Bottles Per hour Pesticide Filling Machine 50ml-1000ml Range 16 Heads
| 1 | Filling speed | ≤9000 Bottles/hour (100ml) |
| 2 | Suitable bottle size | Φ30－100mm height 80-250mm |
| 3 | Suitable cap size | Φ20－80mm height 20-40mm |
| 4 | Accuracy | ≤±1g(200ml)；≤2g(200-1000ml)*water |
| 5 | Feeding port height | 2380mm |
| 6 | Feeding port diameter | Dn90 |
| 7 | Nozzle external diameter | Φ18mm |
| 8 | Minimum bottle opening inner diameter | ≥Φ22mm |
| 9 | Air pressure | 0.6-0.8MPa |
| 10 | Power | ～380V 50Hz/7.5KW |
| 11 | Machine size | 5310×1790×2437mm(L×W×H) |
| 12 | Machine weight | Around 4000kg |
3.Advantages of the 9000 Bottles Per hour Pesticide Filling Machine 50ml-1000ml Range 16 Heads
| 1 | Less worker required | Smart production line | Reduce labor intensity |
| 2 | Easy to use and fast to switch | Handle adjustment | Reduce Tools and Time |
| Calibration marking | Specification adjustment has reference |
| 3 | High quality and high appearance | Rotary capping | High qualified rate and good sealing |
| 4 | Safety, Environmental Protection | Safety equipment | transmission protection, electrical protection |
| Environmental protection | Stainless steel environmental protection cover, air intake, liquid tray, etc. |
| Strong visibility | Intelligent Production Line, High-end Upgrade |
4.Appliication
Strong versatility: widely used in pesticide, fine chemical, daily chemical, fertilizer, oil and other industries, 50-1000ml bottle automatic filling and capping.
Product Tags:
|
|

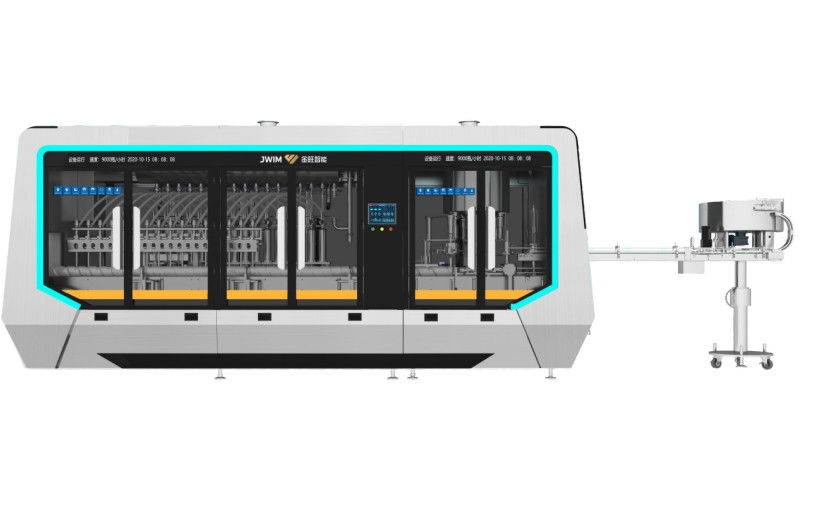

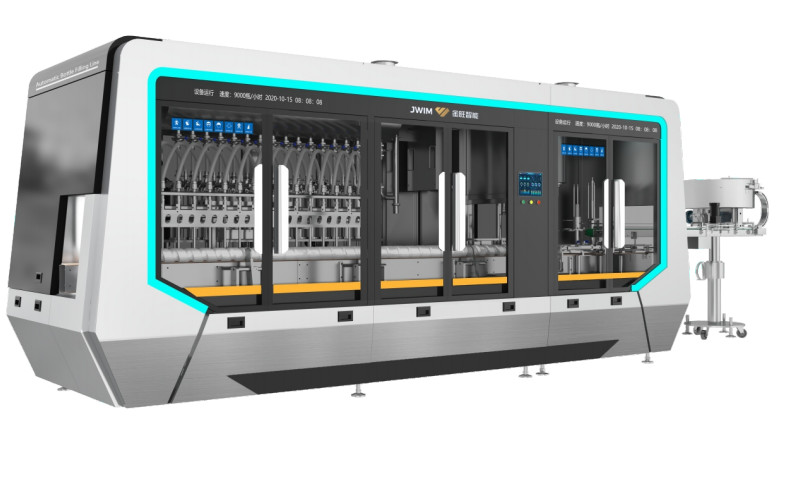

9000 Bottles Per Hour Pesticide Filling Machine 50ml-1000ml Range 16 Heads Images
|
