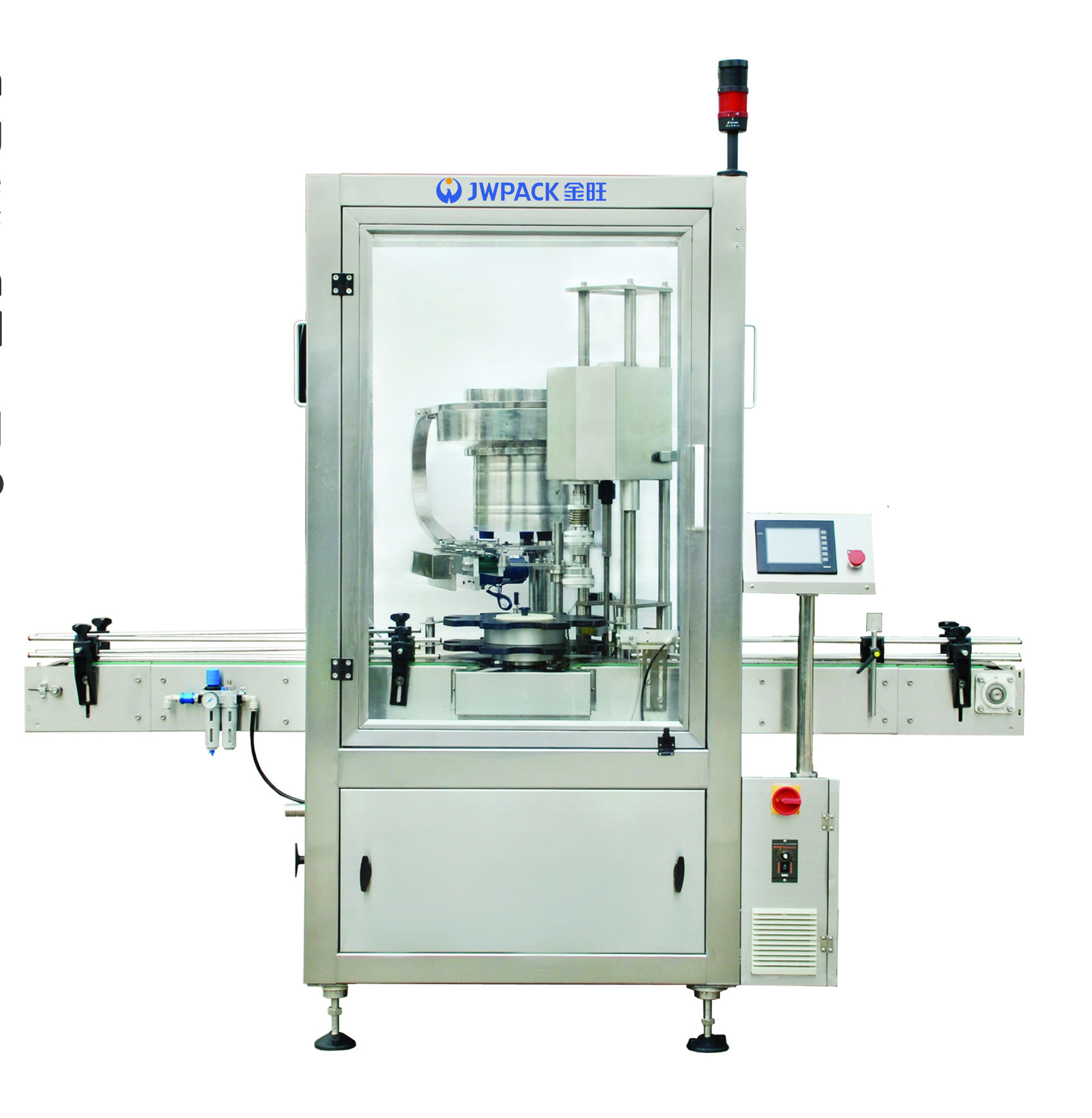

2200 BPH Automatic Rotary Capper Machine With Ca Sorter

Name: 2200 BPH Automatic Rotary Capper Machine With Ca Sorter
Brand: Jinwang
Price: 1 USD

2200 BPH Automatic Rotary Capper Machine With Ca Sorter Manufactures

Brand Name : Jinwang

Model Number : FXJ-1

Certification : CE,CO,ISO

Place of Origin : made in China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1 set per month

Delivery Time : 15-90 work days

Packaging Details : wooden cases

Model : FXJ-1

Name : Automatic Capping Machine

Capacity : ≤2200 bottles per hour

Air Pressure : 0.6-0.8Mpa Clean And Stable Air

Power Supply : ～220V 50Hz

External Dimension : 1800×1676×2040mm（L×W×H）

Control System : Schneider

Applicable Bottle : Φ40-90mm H100-250mm

High Light : auto bottle capping machine, 2200 BPH Automatic Bottle Capping Machine, Automatic Bottle Capping Machine Rotary

Contact Now

2200 BPH Automatic Bottle Capping Machine Rotary Capper Machine With Ca Sorter

1. Introduction of the 2200 BPH Automatic Bottle Capping Machine Rotary Capper Machine With Ca Sorter

FXJ-1 Automatic Capping Machine adopts the design of vibrating cap sorter and fetching cap supplier. The capping head takes the cap and then capping which guarantees the qualification rate of capping. It can realize the capping of plastic caps, aluminum caps, and press-in type caps in changing different capping devices. It is easy to change molds and operate. Capping for different containers can be replaced in a short period of time. The capping machine can be used as a single machine or used in the filling line. It applies to the capping for chemicals, medicine, food, cosmetics, and cleaning products.

2200 BPH Automatic Rotary Capper Machine With Ca Sorter

2.Technical Parameters of the 2200 BPH Automatic Bottle Capping Machine Rotary Capper Machine With Ca Sorter

1	Capacity	≤2200 bottles per hour
2	Distance from liquid level to bottle mouth	≥200mm
3	Applicable Bottle	Φ40-90mm H100-250mm
4	Applicable Cap	Φ25-50mm
5	Air Pressure	0.6-0.8 Mpa
6	Power Supply	～220V 50Hz/2.5KW
7	Weight	680Kg
8	External Dimension	1800×1676×2040mm(L×W×H)

3.Features of the 2200 BPH Automatic Bottle Capping Machine Rotary Capper Machine With Ca Sorter

The automatic capping machine is mainly suitable for caps and caps with different material specifications and specifications. Suitable for screw caps, anti-theft caps, child-proof caps, press-in caps, etc. Equipped with constant torque capping head, the pressure can be easily adjusted. The structure is compact and reasonable, and it can be easily linked with other equipment to form a line, and the dust cover is optional. Advantages of the machine: Linear design, convenient and beautiful to form an assembly line.
The speed of the host adopts imported inverter, which can carry out stepless speed regulation.
